Temperature sensitivity

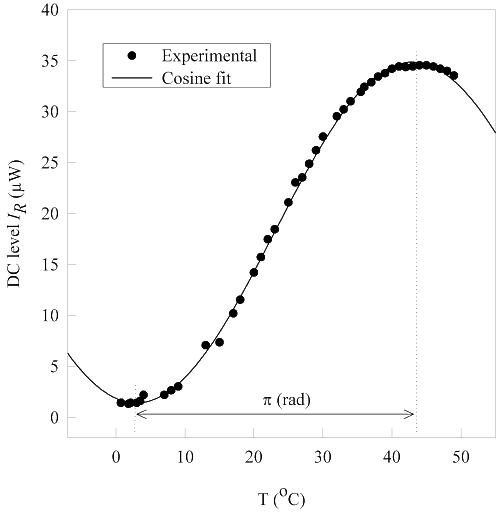

Figure 10 shows a temperature transfer function of the optical fibre hydrophone (25µm Parylene sensing film). The temperature phase sensitivity df /dT is 0.077 rad/K and the bandwidth (25MHz) limited noise-equivalent temperature (resolution) is 65mK.
